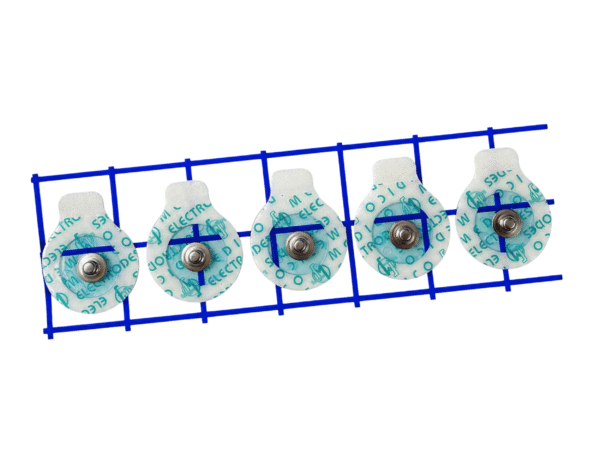

Neo Gel Electrodes

What is it?

Neo Gel Electrodes are compact pediatric pre-gelled electrodes (MSGST-27x, 100 pcs pack) measuring just 3.2 × 2.5 cm. Their small size makes them an excellent choice for EEG and EOG recordings, where precise electrode placement is important. They also work reliably for EMG and ECG applications.

Simply pair them with any BioAmp Cable for quick and hassle-free signal acquisition. Whether you’re a student, researcher, educator, or DIY neurotechnology enthusiast, these electrodes provide a convenient way to capture stable biopotential signals for your projects.

Features and Specifications:

1. Material: Polyethylene foam & acrylic medical-grade adhesive
2. Gel Type: Conductive Solid Hydrogel
3. Snap Connector Material: Stainless Steel
4. Size: 3.2 × 2.5 cm
5. Quantity: 100pcs
6. Latex Free

7. Usage: Preferred to use the gel electrodes only once and discard them afterward to get the best signal recording
8. Ultra-low impedance (<100 ohms) promotes rapid baseline stabilization
9. Electrodes have lift tabs for easy placement and removal
10. Ag/AgCl adhesive solid gel requires minimal cleanup before applying the electrodes to the body
11. Excellent results with no post-procedural cleanup
12. Special gel formulation allows for providing the best possible interface between the body and BioAmp Cable
